#include <WsfSensorsManagerFovSensorScheduler.hpp>

Inheritance diagram for WsfSensorsManagerFovSensorScheduler:

[legend]

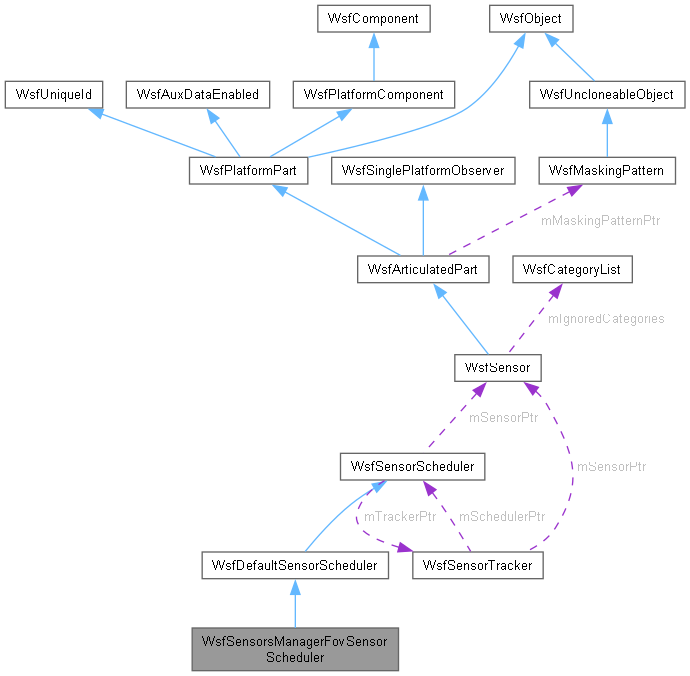

Collaboration diagram for WsfSensorsManagerFovSensorScheduler:

[legend]

Public Member Functions
	WsfSensorsManagerFovSensorScheduler ()
	WsfSensorsManagerFovSensorScheduler (const WsfDefaultSensorScheduler &)
virtual	~WsfSensorsManagerFovSensorScheduler ()
WsfSensorScheduler *	Clone () const override
void	TurnOn (double simTime) override
void	TurnOff (double simTime) override
Public Member Functions inherited from WsfDefaultSensorScheduler
	WsfDefaultSensorScheduler ()
	~WsfDefaultSensorScheduler () override=default
void	FrameTimeChanged (double aSimTime, WsfStringId aModeNameId) override
int	GetActiveRequestCount (WsfStringId aModeNameId) const override
int	GetMaximumRequestCount (WsfStringId aModeNameId) const override
bool	HaveRequestFor (const WsfTrackId &aRequestId) const override
bool	Initialize (double aSimTime, WsfSensor aSensorPtr, WsfSensorTracker aTrackerPtr) override
void	ModeDeselected (double aSimTime, WsfStringId aModeNameId) override
void	ModeSelected (double aSimTime, WsfStringId aModeNameId) override
void	PlatformAdded (double aSimTime, WsfPlatform *aPlatformPtr) override
void	PlatformDeleted (WsfPlatform *aPlatformPtr) override
bool	ProcessInput (UtInput &aInput) override
void	RemoveTarget (double aSimTime, size_t aTargetIndex) override
const WsfTrack &	GetTrackForRequest (const WsfTrackId &aRequestId) const override
bool	SelectTarget (double aSimTime, double &aNextSimTime, size_t &aTargetIndex, WsfTrackId &aRequestId, WsfSensor::Settings &aSettings) override
bool	StartTracking (double aSimTime, const WsfTrack &aTrack, WsfStringId aModeNameId) override
bool	StopTracking (double aSimTime, const WsfTrackId &aRequestId) override
void	TrackerModeChange (double aSimTime, const WsfTrackId &aRequestId, size_t aTargetIndex, WsfPlatform aTargetPtr, const WsfTrack aTrackPtr, WsfStringId aModeNameId) override
const RequestList &	GetRequestList () const
Public Member Functions inherited from WsfSensorScheduler
	WsfSensorScheduler ()
virtual	~WsfSensorScheduler ()=default
bool	DebugEnabled () const
	Returns 'true' if debugging is enabled for the scheduler.
void	SetDebugEnabled (bool aDebug)
WsfSimulation *	GetSimulation () const

Protected Member Functions
	WsfSensorsManagerFovSensorScheduler (const WsfSensorsManagerFovSensorScheduler &)
Protected Member Functions inherited from WsfDefaultSensorScheduler
	WsfDefaultSensorScheduler (const WsfDefaultSensorScheduler &aSrc)
WsfDefaultSensorScheduler &	operator= (const WsfDefaultSensorScheduler &)=delete
void	CheckSearchModeAvailability ()
	Check if the current mode selections provide for the ability to process search chances.
void	DeselectMode (double aSimTime, Request &aRequest)
	Deselect the mode associated with the current request if it is not in use by other requests.
void	SelectMode (double aSimTime, Request &aRequest)
void	ResetTrackList ()
void	ResetSearchList ()
size_t	SelectTargetForRequest (Request &aRequest)
bool	TargetHasActiveRequest (size_t aTargetIndex) const
	Returns true if the target has an active request against it.
void	UpdateNextTrackVisitTime ()
void	UpdateSearchChanceInterval ()
void	UpdateSearchFrameTime (double aSimTime)
Protected Member Functions inherited from WsfSensorScheduler
	WsfSensorScheduler (const WsfSensorScheduler &aSrc)
WsfSensorScheduler &	operator= (const WsfSensorScheduler &aSrc)=delete
const SearchList &	GetSearchList () const

Additional Inherited Members
Public Types inherited from WsfDefaultSensorScheduler
using	RequestList = std::vector<Request>
using	RequestListIndex = RequestList::size_type
Static Public Member Functions inherited from WsfDefaultSensorScheduler
static std::unique_ptr< WsfSensorScheduler >	ObjectFactory (const std::string &aTypeName)
Protected Types inherited from WsfDefaultSensorScheduler
enum	ScanSchedulingMethod { cSSM_RANDOM , cSSM_INPUT_ORDER , cSSM_REVERSE_INPUT_ORDER }
Protected Types inherited from WsfSensorScheduler
using	SearchList = std::vector<size_t>
using	SearchListIndex = SearchList::size_type
Protected Attributes inherited from WsfDefaultSensorScheduler
std::vector< WsfSensorMode * >	mModeList
	The pointers to the sensor modes, indexed by mode index.
double	mDwellEndTime
double	mNextSearchVisitTime
double	mNextTrackVisitTime
double	mSearchChanceInterval
double	mSearchFrameTime
SearchListIndex	mSearchIndex
	The vector index of the next search chance to be performed.
RequestList	mRequestList
	A list of active track requests.
RequestListIndex	mRequestIndex
	The index of the next request to be performed.
size_t	mLastExplicitModeIndex
	The last mode explicitly selected (i.e.: via WsfSensor::SelectMode).
size_t	mSearchModeIndex
bool	mSearchAllowed
	'true' if search chances can be processed.
bool	mCheckSearchList
ScanSchedulingMethod	mScanSchedulingMethod
	How scan chances are added to the search list.
Protected Attributes inherited from WsfSensorScheduler
WsfSensor *	mSensorPtr
WsfSensorTracker *	mTrackerPtr
SearchList	mSearchList
