WsfPassiveSensor::PassiveBeam Class Reference

A 'beam' of a sensor 'mode'. More...

#include <WsfPassiveSensor.hpp>

Inheritance diagram for WsfPassiveSensor::PassiveBeam:

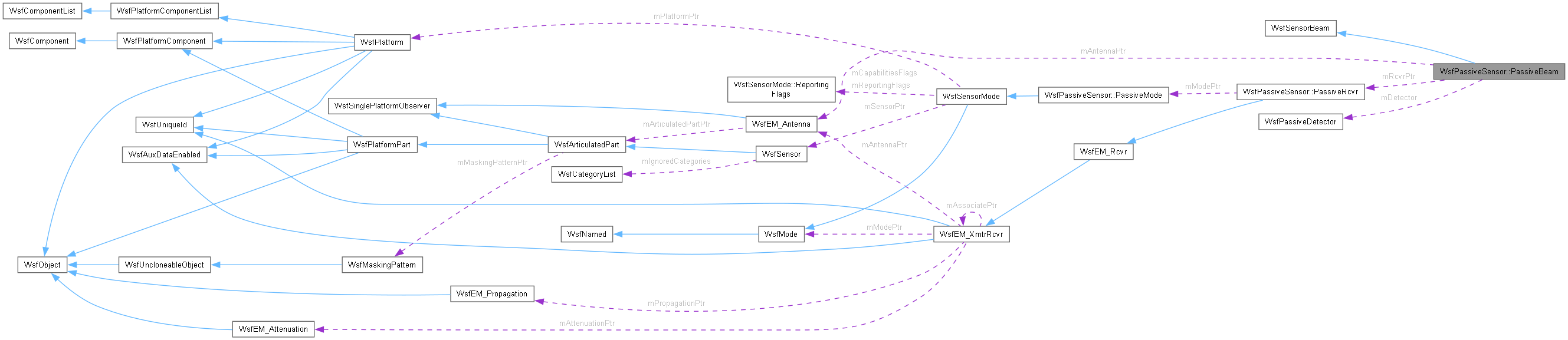

Collaboration diagram for WsfPassiveSensor::PassiveBeam:

Public Member Functions
	PassiveBeam ()
	PassiveBeam (const PassiveBeam &aSrc)
PassiveBeam &	operator= (const PassiveBeam &aRhs)
	~PassiveBeam () override
WsfEM_Rcvr *	GetEM_Rcvr () override
bool	ProcessInput (UtInput &aInput) override
bool	Initialize (WsfSensor *aSensorPtr, PassiveMode *aModePtr)
bool	AttemptToDetect (double aSimTime, WsfEM_Xmtr *aXmtrPtr, WsfSensorResult &aResult, WsfEM_Interaction *aAuxInteractionPtr, bool aPSOS_Enabled, Interactor *aInteractorPtr)
bool	ComputePSOS_Effects (double aSimTime, WsfEM_Xmtr *aXmtrPtr, WsfSensorResult &aResult, Interactor *aInteractorPtr)
void	ProcessFailedPSOS_Detection (double aSimTime, Interactor *aInteractorPtr)
Public Member Functions inherited from WsfSensorBeam
	WsfSensorBeam ()
	WsfSensorBeam (const WsfSensorBeam &aSrc)=default
WsfSensorBeam &	operator= (const WsfSensorBeam &aRhs)
virtual	~WsfSensorBeam ()=default
virtual int	GetNumberOfPulsesIntegrated () const
virtual double	GetIntegrationGain () const
virtual void	SetIntegrationGain (double aIntegrationGain)
virtual WsfEM_Clutter *	GetClutter () const
virtual WsfEM_Xmtr *	GetEM_Xmtr ()
virtual bool	Initialize (double aSimTime)
void	SetBeamOwner (WsfSensorMode *aSensorModePtr)
	Set the beam owner (the parent mode).
void	SetBeamIndex (size_t aBeamIndex)
WsfSensorMode *	GetSensorMode () const
size_t	GetBeamIndex () const
WsfSensorSignalProcessor::List &	GetSignalProcessors ()

External Services access.
These methods support the External Services and are not part of the WSF public interface.
WsfEM_Antenna *	mAntennaPtr
PassiveRcvr *	mRcvrPtr
WsfPassiveDetector	mDetector
size_t	GetDetectionThresholdCount (SignalType aSignalType) const
void	GetDetectionThresholdEntry (SignalType aSignalType, size_t aIndex, double &aFrequency, double &aThreshold) const
size_t	GetDetectionSensitivityCount (SignalType aSignalType) const
void	GetDetectionSensitivityEntry (SignalType aSignalType, size_t aIndex, double &aFrequency, double &aSensitivity) const
bool	TuneFrequencyBand (double aSimTime, bool aReset, unsigned int aFrequencyBandNumber, double aLowerFreq, double aUpperFreq, double aDwellTime, double aRevistTime)

Detailed Description

A 'beam' of a sensor 'mode'.

Constructor & Destructor Documentation

PassiveBeam() [1/2]

WsfPassiveSensor::PassiveBeam::PassiveBeam

(

)

References mAntennaPtr, mDetector, mRcvrPtr, and WsfSensorBeam::WsfSensorBeam().

Referenced by operator=(), and PassiveBeam().

PassiveBeam() [2/2]

WsfPassiveSensor::PassiveBeam::PassiveBeam

(

const PassiveBeam &

aSrc

)

References mAntennaPtr, mDetector, mRcvrPtr, PassiveBeam(), and WsfSensorBeam::WsfSensorBeam().

~PassiveBeam()

WsfPassiveSensor::PassiveBeam::~PassiveBeam ( )

override

References mAntennaPtr, and mRcvrPtr.

Member Function Documentation

AttemptToDetect()

bool WsfPassiveSensor::PassiveBeam::AttemptToDetect	(	double	aSimTime,
		WsfEM_Xmtr *	aXmtrPtr,
		WsfSensorResult &	aResult,
		WsfEM_Interaction *	aAuxInteractionPtr,
		bool	aPSOS_Enabled,
		Interactor *	aInteractorPtr )

Parameters

aSimTime	The current simulation time.
aXmtrPtr	Pointer to the transmitter that is attempting to be detected.
aResult	The structure containing the results of the interaction.
aAuxInteractionPtr	An auxiliary interaction that is attempting to be detected. This will be zero if there is not an auxiliary interaction.
aPSOS_Enabled	'true' if 'Probabilistic Scan-On-Scan' processing is enabled.
aInteractorPtr	Pointer to the 'Interactor' object. This is only used if PSOS is enabled.

References WsfSensorResult::BeginOneWayInteraction(), ComputePSOS_Effects(), WsfEM_Interaction::ComputeRF_OneWayPower(), WsfEM_Interaction::ComputeUndefinedGeometry(), WsfEM_Interaction::cSIGNAL_LEVEL, DEBUG_PASSIVE_SENSOR, WsfEM_XmtrRcvr::GetFrequency(), WsfEM_Interaction::MaskedByTerrain(), WsfEM_Interaction::mCheckedStatus, WsfEM_Interaction::mClutterPower, WsfEM_Interaction::mDetectionThreshold, mDetector, WsfEM_Interaction::mFailedStatus, WsfEM_Interaction::BeamData::mGain, WsfEM_Interaction::mInterferencePower, WsfSensorResult::mPd, WsfEM_Interaction::mRcvdPower, mRcvrPtr, WsfSensorResult::mRequiredPd, WsfEM_Interaction::mSignalToNoise, WsfPassiveSensor::Interactor::mUseListener, WsfEM_Interaction::mXmtrBeam, ProcessFailedPSOS_Detection(), WsfEM_Interaction::SetReceiverBeamPosition(), and WsfEM_Interaction::SetTransmitterBeamPosition().

ComputePSOS_Effects()

bool WsfPassiveSensor::PassiveBeam::ComputePSOS_Effects	(	double	aSimTime,
		WsfEM_Xmtr *	aXmtrPtr,
		WsfSensorResult &	aResult,
		Interactor *	aInteractorPtr )

References WsfEM_Antenna::cSCAN_AZ, WsfEM_Antenna::cSCAN_AZ_EL, WsfEM_Interaction::cSIGNAL_LEVEL, WsfEM_XmtrRcvr::GetAntenna(), WsfEM_XmtrRcvr::GetAntennaGain(), WsfEM_XmtrRcvr::GetAntennaPattern(), WsfEM_Antenna::GetAzimuthScanLimits(), WsfEM_XmtrRcvr::GetFrequency(), WsfAntennaPattern::GetGainThresholdFraction(), WsfObject::GetName(), WsfEM_XmtrRcvr::GetPlatform(), WsfEM_XmtrRcvr::GetPolarization(), WsfEM_Antenna::GetScanMode(), WsfEM_Interaction::MaskedByTerrain(), WsfEM_Interaction::BeamData::mAz, WsfEM_Interaction::mCheckedStatus, WsfEM_Interaction::mDetectionThreshold, WsfEM_Interaction::BeamData::mEBS_El, WsfEM_Interaction::BeamData::mEl, WsfEM_Interaction::mFailedStatus, WsfEM_Interaction::BeamData::mGain, WsfSensorResult::mPd, WsfPassiveSensor::Interactor::mPSOS_CumulativePd, WsfEM_Interaction::mRcvdPower, mRcvrPtr, WsfSensorResult::mRequiredPd, WsfEM_Interaction::mXmtrBeam, and ProcessFailedPSOS_Detection().

Referenced by AttemptToDetect().

GetDetectionSensitivityCount()

size_t WsfPassiveSensor::PassiveBeam::GetDetectionSensitivityCount

(

SignalType

aSignalType

)

const

Gets the count of frequency-sensitivity entries.

Parameters

aSignalType

Type of signal (continuous (cST_CONTINUOUS) or pulsed (cST_PULSED)).

Returns

the count of frequency-threshold entries.

References mDetector.

GetDetectionSensitivityEntry()

void WsfPassiveSensor::PassiveBeam::GetDetectionSensitivityEntry	(	SignalType	aSignalType,
		size_t	aIndex,
		double &	aFrequency,
		double &	aSensitivity ) const

Gets the data in a frequency-sensitivity entry.

Parameters

aSignalType	Type of signal (continuous (cST_CONTINUOUS) or pulsed (cST_PULSED)).
aIndex	The index of the entry.
aFrequency	The frequency in the entry.
aSensitivity	The sensitivity value in the entry.

References mDetector.

GetDetectionThresholdCount()

size_t WsfPassiveSensor::PassiveBeam::GetDetectionThresholdCount

(

SignalType

aSignalType

)

const

Gets the count of frequency-threshold entries.

Parameters

aSignalType

Type of signal (continuous (cST_CONTINUOUS) or pulsed (cST_PULSED)).

Returns

the count of frequency-threshold entries.

References mDetector.

GetDetectionThresholdEntry()

void WsfPassiveSensor::PassiveBeam::GetDetectionThresholdEntry	(	SignalType	aSignalType,
		size_t	aIndex,
		double &	aFrequency,
		double &	aThreshold ) const

Gets the data in a frequency-threshold entry.

Parameters

aSignalType	Type of signal (continuous (cST_CONTINUOUS) or pulsed (cST_PULSED)).
aIndex	The index of the entry.
aFrequency	The frequency in the entry.
aThreshold	The threshold value in the entry.

References mDetector.

GetEM_Rcvr()

WsfEM_Rcvr * WsfPassiveSensor::PassiveBeam::GetEM_Rcvr ( )

inlineoverridevirtual

Reimplemented from WsfSensorBeam.

References mRcvrPtr.

Initialize()

bool WsfPassiveSensor::PassiveBeam::Initialize	(	WsfSensor *	aSensorPtr,
		PassiveMode *	aModePtr )

References WsfPlatformPart::DebugEnabled(), WsfPlatformPart::GetSimulation(), mAntennaPtr, mDetector, mRcvrPtr, ok, and WsfSensorBeam::WsfSensor.

Referenced by WsfPassiveSensor::PassiveMode::Initialize().

operator=()

WsfPassiveSensor::PassiveBeam & WsfPassiveSensor::PassiveBeam::operator=

(

const PassiveBeam &

aRhs

)

References mAntennaPtr, mDetector, mRcvrPtr, WsfSensorBeam::operator=(), PassiveBeam(), and WsfPassiveSensor::PassiveRcvr.

ProcessFailedPSOS_Detection()

void WsfPassiveSensor::PassiveBeam::ProcessFailedPSOS_Detection	(	double	aSimTime,
		Interactor *	aInteractorPtr )

Process a failed PSOS detection attempt. This routine is called whenever PSOS is enabled and a detection attempt determines there is absolutely no probability of a detection.

References WsfPassiveSensor::Interactor::mPSOS_CumulativePd.

Referenced by AttemptToDetect(), and ComputePSOS_Effects().

ProcessInput()

bool WsfPassiveSensor::PassiveBeam::ProcessInput ( UtInput & aInput )

overridevirtual

Reimplemented from WsfSensorBeam.

References WsfPassiveDetector::cST_CONTINUOUS, WsfPassiveDetector::cST_PULSED, mAntennaPtr, mDetector, and mRcvrPtr.

TuneFrequencyBand()

bool WsfPassiveSensor::PassiveBeam::TuneFrequencyBand	(	double	aSimTime,
		bool	aReset,
		unsigned int	aFrequencyBandNumber,
		double	aLowerFreq,
		double	aUpperFreq,
		double	aDwellTime,
		double	aRevistTime )

References mRcvrPtr.

Member Data Documentation

mAntennaPtr

WsfEM_Antenna* WsfPassiveSensor::PassiveBeam::mAntennaPtr

Referenced by Initialize(), WsfPassiveSensor::PassiveMode::Initialize(), operator=(), PassiveBeam(), PassiveBeam(), ProcessInput(), and ~PassiveBeam().

mDetector

WsfPassiveDetector WsfPassiveSensor::PassiveBeam::mDetector

Referenced by AttemptToDetect(), GetDetectionSensitivityCount(), GetDetectionSensitivityEntry(), GetDetectionThresholdCount(), GetDetectionThresholdEntry(), Initialize(), operator=(), PassiveBeam(), PassiveBeam(), and ProcessInput().

mRcvrPtr

PassiveRcvr* WsfPassiveSensor::PassiveBeam::mRcvrPtr

Referenced by AttemptToDetect(), ComputePSOS_Effects(), GetEM_Rcvr(), WsfPassiveSensor::GetNumberofFrequencyBands(), Initialize(), WsfPassiveSensor::PassiveMode::Initialize(), operator=(), PassiveBeam(), PassiveBeam(), ProcessInput(), WsfPassiveSensor::PassiveMode::ProcessInput(), TuneFrequencyBand(), and ~PassiveBeam().

---

The documentation for this class was generated from the following files:

• WsfPassiveSensor.hpp
• WsfPassiveSensor.cpp
