WsfBeamDirector::WsfBeamDirectorMode Class Reference

#include <WsfBeamDirector.hpp>

Inheritance diagram for WsfBeamDirector::WsfBeamDirectorMode:
Inheritance graph
[legend]

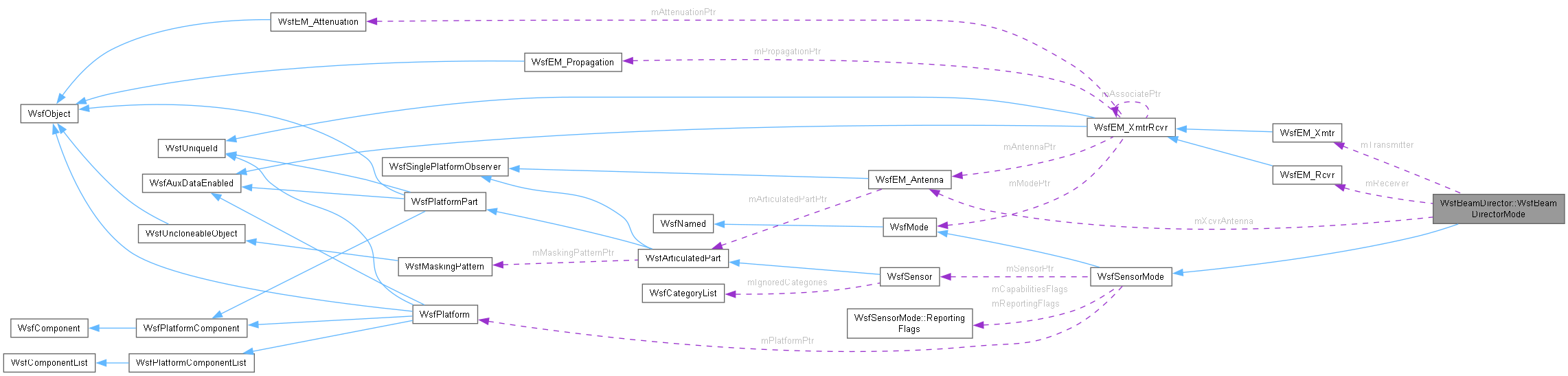

Collaboration diagram for WsfBeamDirector::WsfBeamDirectorMode:
Collaboration graph
[legend]

Public Types

enum  Type {
  cSCANNING = 0 , cLOCKED = 1 , cLOCKED_WAITING_FOR_CUE = 2 , cCUED = 3 ,
  cBREAKLOCK = 4 , cNUM_STATES = 5 , cUNDEFINED = 999
}

Public Member Functions

 WsfBeamDirectorMode ()=default
 WsfBeamDirectorMode (const WsfBeamDirectorMode &aSrc)
WsfBeamDirectorMode & operator= (const WsfBeamDirectorMode &)=delete
 ~WsfBeamDirectorMode () override
WsfSensorMode * Clone () const override
 Create an exact duplicate of this mode.
bool ProcessInput (UtInput &aInput) override
bool Initialize (double aSimTime) override
void SetTrack (const WsfTrack &aTrack)
bool IsImaging () const
bool IsTracking () const
WsfTrack & GetTrack ()
int GetType () const
void PointAtTargetUpdate (double aSimTime)
 Update the pointing at a given track by using a kinematic update.
const std::set< WsfStringId > & GetTargetsInFOV () const
bool AttemptToDetect (double aSimTime, WsfPlatform *aTargetPtr, WsfSensor::Settings &aSettings, WsfSensorResult &aResult) override
void Deselect (double aSimTime) override
void Select (double aSimTime) override
const WsfImage & GetImage ()
const WsfImage::Object * GetImageObject () const
const WsfTrack & GetTrack () const
void Update (double aSimTime)
double GetMaxRange () const
 Get the maximum range for this sensor.
WsfEM_Xmtr & GetEM_Xmtr ()
WsfEM_Xmtr & GetEM_Xmtr (unsigned int aIndex)
WsfEM_Rcvr & GetEM_Rcvr ()
WsfEM_Rcvr & GetEM_Rcvr (unsigned int aIndex)
Public Member Functions inherited from WsfSensorMode
 WsfSensorMode ()
 WsfSensorMode (const WsfSensorMode &aSrc)
WsfSensorMode & operator= (const WsfSensorMode &aRhs)
 ~WsfSensorMode () override
WsfPlatform * GetPlatform () const
 Return the pointer to the platform to which the associated sensor is attached.
WsfSensor * GetSensor () const
 Return the pointer to the sensor with which this mode is associated.
const WsfScenario & GetScenario () const
WsfSimulation * GetSimulation () const
bool ProcessInput (UtInput &aInput) override
size_t GetOnSuccessModeIndex () const
size_t GetOnFailureModeIndex () const
int GetMessageLength () const
 Return the logical length (int bits) of report messages that originate from this sensor mode.
int GetMessagePriority () const
 Return the priority of report messages that originate from this sensor mode.
void UpdateTrackPosition (WsfTrack *aTrackPtr, WsfSensorResult &aResult, const double aTgtLocationWCS[3])
WsfSensor::SlewMode GetCueMode () const
virtual size_t GetBeamCount () const
virtual WsfSensorBeam * GetBeamEntry (size_t aIndex)
virtual double GetAltFreqSelectDelay () const
virtual void ScheduleAltFreqChange (double aSimTime, int aAltFreqId=-1)
virtual bool IsAltFreqChangeScheduled () const
virtual double GetLastAltFreqSelectTime () const
virtual bool IsFrequencyAgile () const
virtual void ApplyMeasurementErrors (WsfSensorResult &aResult)
virtual WSF_DEPRECATED void ComputeMeasurementErrors (WsfSensorResult &aResult, double &aAzError, double &aElError, double &aRangeError, double &aRangeRateError) final
virtual void InitializeTrack (double aSimTime, WsfTrack *&aTrackPtr)
virtual void UpdateSensorCueingLimits ()
virtual void UpdateTrack (double aSimTime, WsfTrack *aTrackPtr, WsfPlatform *aTargetPtr, WsfSensorResult &aResult)
virtual void UpdateTrackReportingFlags (double aSimTime, WsfTrack *aTrackPtr)
virtual bool WithinDetectionRange (double aSimTime, WsfPlatform *aTargetPtr)
double GetMaximumRange () const
 Return the optimistic maximum range of the sensor mode.
int GetMaximumRequestCount () const
 Return the maximum number of cued-search or tracking requests the mode can support.
bool DisablesSearch () const
 Does using this mode prevent this or any other mode from searching?
bool CanSearchWhileTrack () const
 Can this mode continue to search while it is also performing tracking requests.
double GetFrameTime () const
void SetFrameTime (double aFrameTime)
double GetRevisitTime () const
double GetDwellTime () const
double GetRequiredPd () const
double EstablishTrackProbability () const
double MaintainTrackProbability () const
int HitsToEstablishTrack () const
 The number of hits (M) within the window (N) that are required to establish a track.
int EstablishTrackWindow () const
 The window size (N) for establishing a track.
int HitsToMaintainTrack () const
 The number of hits (M) within the window (N) that are required to maintain a track.
int MaintainTrackWindow () const
 The window size (N) for maintaining a track.
unsigned int EstablishTrackMask () const
unsigned int MaintainTrackMask () const
double GetTrackQuality () const
unsigned int GetReportingFlags () const
 Accessors for the reporting flags.
bool ReportsLocation () const
bool ReportsVelocity () const
bool ReportsRange () const
bool ReportsBearing () const
bool ReportsElevation () const
bool ReportsRangeRate () const
bool ReportsSide () const
bool ReportsType () const
bool ReportsIFF_Status () const
bool ReportsSignalToNoise () const
bool ReportsFrequency () const
bool ReportsPulseWidth () const
bool ReportsPulseRepititionInterval () const
const wsf::SensorErrorModelBase * GetErrorModel () const
wsf::SensorErrorModelBase * GetErrorModel ()
void SetErrorModel (std::unique_ptr< wsf::SensorErrorModelBase > aErrorModelPtr)
virtual WSF_DEPRECATED double GetAzErrorStdDev () final
virtual WSF_DEPRECATED double GetElErrorStdDev () final
virtual WSF_DEPRECATED double GetRangeErrorStdDev () final
virtual WSF_DEPRECATED double GetRangeRateErrorStdDev () final
virtual WSF_DEPRECATED void SetAzErrorStdDev (double aAzErrorStdDev) final
virtual WSF_DEPRECATED void SetElErrorStdDev (double aElErrorStdDev) final
virtual WSF_DEPRECATED void SetRangeErrorStdDev (double aRangeErrorStdDev) final
virtual WSF_DEPRECATED void SetRangeRateErrorStdDev (double aRangeRateErrorStdDev) final
Public Member Functions inherited from WsfMode
 WsfMode ()
 ~WsfMode () override=default
size_t GetModeIndex () const
 Return the index of this mode within its associated mode list.
bool IsSelected () const
 Returns 'true' if the mode is selected.
Public Member Functions inherited from WsfNamed
 WsfNamed ()
 WsfNamed (WsfStringId aName)
 WsfNamed (const WsfNamed &)=default
WsfNamed & operator= (const WsfNamed &)=default
virtual ~WsfNamed ()=default
const std::string & GetName () const
WsfStringId GetNameId () const
void SetName (WsfStringId aName)

Protected Member Functions

void PointAtWCS (double aSimTime, double aPointAtWCS[3])
void CreateTrackFromResult (double aSimTime, const WsfSensorResult &aResult, WsfPlatform *aTargetPtr)
void CreateImageFromResult (double aSimTime, const WsfSensorResult &aResult, WsfPlatform *aTargetPtr)
bool InitializeReporting ()
virtual void SelectAlternateFrequency (double aSimTime, int aAltFreqId=-1)
void SetCapabilities (unsigned int aFlags)
void SetReportingFlags (unsigned int aFlags)

Protected Attributes

WsfEM_Xmtr mTransmitter = WsfEM_Xmtr(WsfEM_Xmtr::cXF_SENSOR)
WsfEM_Antenna mXcvrAntenna = WsfEM_Antenna()
WsfEM_Rcvr mReceiver = WsfEM_Rcvr(WsfEM_Rcvr::cRF_SENSOR)
WsfSensor * mSensorPtr
 Pointer to the sensor with which the mode is associated.
WsfPlatform * mPlatformPtr
 Pointer to the platform with which the sensor is associated.
double mMaximumRange
double mAzCueRate
double mElCueRate
double mMinAzCue
double mMaxAzCue
double mMinElCue
double mMaxElCue
WsfSensor::SlewMode mCueMode
int mMaximumRequestCount
bool mCanSearchWhileTrack
bool mDisablesSearch
double mFrameTime
double mRevisitTime
double mDwellTime
double mRequiredPd
double mEstablishTrackProbability
 When the M/N establish track criteria is met, this is the probability that a track will be established.
double mMaintainTrackProbability
int mHitsToEstablishTrack
 The number of hits (M) within the window (N) that are required to establish a track.
int mEstablishTrackWindow
 The window size (N) for establishing a track.
unsigned int mEstablishTrackMask
int mHitsToMaintainTrack
 The number of hits (M) within the window (N) that are required to maintain a track.
int mMaintainTrackWindow
 The window size (N) for maintaining a track.
unsigned int mMaintainTrackMask
double mTrackQuality
 Base line track quality (0..1].
double mAzErrorStdDev
double mElErrorStdDev
double mRangeErrorStdDev
double mRangeRateErrorStdDev
 Range rate error standard deviation.
ut::CloneablePtr< wsf::SensorErrorModelBase > mErrorModelPtr {nullptr}
 The model that calculates and applies errors to sensor detection results.
WsfStringId mOnSuccessModeName
size_t mOnSuccessModeIndex
WsfStringId mOnFailureModeName
size_t mOnFailureModeIndex
int mMessageLength
 The length of messages originating from this sensor mode.
int mMessagePriority
 The priority of messages originating from this sensor mode.
WsfSpatialDomain mReportsSpatialDomain
ReportingFlags mReportingFlags
ReportingFlags mCapabilitiesFlags

Additional Inherited Members

static const unsigned int cNONE = 0
 The following are flags/masks meant to be combined and used in the SetCapabilities method.
static const unsigned int cLOCATION = 1
static const unsigned int cVELOCITY = 2
static const unsigned int cRANGE = 4
static const unsigned int cBEARING = 8
static const unsigned int cELEVATION = 16
static const unsigned int cRANGE_RATE = 32
static const unsigned int cSIDE = 64
static const unsigned int cTYPE = 128
static const unsigned int cIFF_STATUS = 256
static const unsigned int cSIGNAL_TO_NOISE = 512
static const unsigned int cFREQUENCY = 1024
static const unsigned int cPULSEWIDTH = 2048
static const unsigned int cPULSE_REPITITION_INTERVAL = 4096
static const unsigned int cSTATE_COVARIANCE = 8192
static const unsigned int cOTHER = 16384
static const unsigned int cALL = 0xFFFFFFFF
 Catch-all for anything other than the above.

Member Enumeration Documentation

◆ Type

enum WsfBeamDirector::WsfBeamDirectorMode::Type

The possible mode types of the beam director (previously in LaserState). Do not change the current enumerations; they are being used by the API.

Enumerator
cSCANNING
cLOCKED
cLOCKED_WAITING_FOR_CUE
cCUED
cBREAKLOCK
cNUM_STATES
cUNDEFINED

Constructor & Destructor Documentation

◆ WsfBeamDirectorMode() [1/2]

WsfBeamDirector::WsfBeamDirectorMode::WsfBeamDirectorMode ( )
default

References WsfBeamDirectorMode().

Referenced by Clone(), operator=(), WsfBeamDirectorMode(), and WsfBeamDirectorMode().

◆ WsfBeamDirectorMode() [2/2]

WsfBeamDirector::WsfBeamDirectorMode::WsfBeamDirectorMode ( const WsfBeamDirectorMode & aSrc)

References mReceiver, mTransmitter, mXcvrAntenna, WsfBeamDirectorMode(), and WsfSensorMode::WsfSensorMode().

◆ ~WsfBeamDirectorMode()

WsfBeamDirector::WsfBeamDirectorMode::~WsfBeamDirectorMode ( )
override

Member Function Documentation

◆ AttemptToDetect()

bool WsfBeamDirector::WsfBeamDirectorMode::AttemptToDetect ( double aSimTime,
WsfPlatform * aTargetPtr,
WsfSensor::Settings & aSettings,
WsfSensorResult & aResult )
overridevirtual

Attempt to detect another platform.

This provides the common interface used to determine if a sensor can detect another platform. The base class implementation simply invokes the mode-specific AttemptsToDetect method for the currently selected mode.

Parameters
aSimTime[input] The current simulation time.
aTargetPtr[input] The target to attempt to detect.
aSettings[input] A Settings object that indicates the operational settings to be used for the detection attempt.
aResult[output] A Result object that contains detailed information about the result detection attempt.
Returns
true if the target can be detected. This should be the same as testing ((aResult.mCheckedStatus != 0) && (aResult.mFailedStatus == 0)).

See the base class for documentation of the arguments and return value.

Implements WsfSensorMode.

References WsfSensorResult::BeginTwoWayInteraction(), WsfSensorResult::cCONCEALMENT, WsfPlatform::Comment(), WsfEM_Interaction::cRCVR_ANGLE_LIMITS, CreateImageFromResult(), CreateTrackFromResult(), cSCANNING, cWSF_COMPONENT_INTERSECT_MESH, WsfPlatformPart::DebugEnabled(), WsfComponentListT< COMPONENT_TYPE >::FindComponentByRole(), WsfAuxDataEnabled::GetAuxDataConst(), WsfComponentList::GetComponent(), WsfPlatform::GetConcealmentFactor(), WsfBeamDirector::GetMaxRange(), WsfSensor::GetModeIndex(), WsfObject::GetName(), WsfObject::GetNameId(), WsfPlatformPart::GetPlatform(), WsfSensorMode::GetSensor(), WsfBeamDirector::GetTargetOffset(), WsfIntersectMesh::GetTargetOffsetName(), WsfIntersectProcessor::GetTargetOffsetName(), WsfObject::GetTypeId(), WsfOpticalSignature::GetValue(), WsfIntersectMesh::Intersect(), WsfIntersectProcessor::Intersect(), WsfBeamDirector::IsImaging(), WsfArticulatedPart::IsSlewing(), WsfBeamDirector::IsTracking(), WsfEM_Interaction::MaskedByTerrain(), WsfEM_Interaction::RelativeData::mAz, WsfEM_Interaction::mCheckedStatus, WsfEM_Interaction::RelativeData::mEl, WsfEM_Interaction::mFailedStatus, WsfSensorResult::mMeasurement, WsfSensorResult::mModeIndex, WsfEM_Interaction::mOpticalSig, WsfEM_Interaction::mOpticalSigAz, WsfEM_Interaction::mOpticalSigEl, WsfSensorResult::mPd, WsfEM_Interaction::RelativeData::mRange, WsfEM_Interaction::mRcvrToTgt, mReceiver, mTransmitter, mXcvrAntenna, PointAtTargetUpdate(), WsfSensorComponent::PostAttemptToDetect(), WsfEM_Interaction::Print(), WsfSensorResult::Reset(), success, WsfIntersectMesh::TargetOffsetExists(), WsfIntersectProcessor::TargetOffsetExists(), and WsfBeamDirector::WsfBeamDirector().

◆ Clone()

WsfSensorMode * WsfBeamDirector::WsfBeamDirectorMode::Clone ( ) const
inlineoverridevirtual

Create an exact duplicate of this mode.

Implements WsfSensorMode.

References WsfBeamDirectorMode(), and WsfSensorMode::WsfSensorMode().

◆ CreateImageFromResult()

void WsfBeamDirector::WsfBeamDirectorMode::CreateImageFromResult ( double aSimTime,
const WsfSensorResult & aResult,
WsfPlatform * aTargetPtr )
protected

References WsfImage::AddObject(), WsfSensorMode::GetSensor(), WsfObject::GetTypeId(), WsfEM_Interaction::mOpticalSig, WsfEM_Interaction::RelativeData::mRange, WsfEM_Interaction::mRcvrToTgt, WsfImage::SetImageNumber(), and WsfImage::SetImageTime().

Referenced by AttemptToDetect().

◆ CreateTrackFromResult()

void WsfBeamDirector::WsfBeamDirectorMode::CreateTrackFromResult ( double aSimTime,
const WsfSensorResult & aResult,
WsfPlatform * aTargetPtr )
protected

References WsfPlatformPart::DebugEnabled(), WsfPlatform::GetIndex(), WsfObject::GetName(), WsfObject::GetNameId(), WsfSensorMode::GetSensor(), and WsfSensorResult::mMeasurement.

Referenced by AttemptToDetect().

◆ Deselect()

void WsfBeamDirector::WsfBeamDirectorMode::Deselect ( double aSimTime)
overridevirtual

The mode is being deselected. The specific implementation should perform whatever actions are associated with deselecting the mode (e.g.: deactivating transmitters or receivers).

Parameters
aSimTime[input] The current simulation time.

Implements WsfSensorMode.

References WsfSensorMode::GetSensor(), mReceiver, mTransmitter, WsfBeamDirector::SetCue(), and WsfBeamDirector::WsfBeamDirector().

◆ GetEM_Rcvr() [1/2]

WsfEM_Rcvr & WsfBeamDirector::WsfBeamDirectorMode::GetEM_Rcvr ( )
inline

References mReceiver.

◆ GetEM_Rcvr() [2/2]

WsfEM_Rcvr & WsfBeamDirector::WsfBeamDirectorMode::GetEM_Rcvr ( unsigned int aIndex)
inline

References mReceiver.

◆ GetEM_Xmtr() [1/2]

WsfEM_Xmtr & WsfBeamDirector::WsfBeamDirectorMode::GetEM_Xmtr ( )
inline

References mTransmitter.

◆ GetEM_Xmtr() [2/2]

WsfEM_Xmtr & WsfBeamDirector::WsfBeamDirectorMode::GetEM_Xmtr ( unsigned int aIndex)
inline

References mTransmitter.

◆ GetImage()

const WsfImage & WsfBeamDirector::WsfBeamDirectorMode::GetImage ( )

References WsfSensorMode::GetSensor().

◆ GetImageObject()

const WsfImage::Object * WsfBeamDirector::WsfBeamDirectorMode::GetImageObject ( ) const
inline

◆ GetMaxRange()

double WsfBeamDirector::WsfBeamDirectorMode::GetMaxRange ( ) const
inline

Get the maximum range for this sensor.

References mXcvrAntenna.

◆ GetTargetsInFOV()

const std::set< WsfStringId > & WsfBeamDirector::WsfBeamDirectorMode::GetTargetsInFOV ( ) const
inline

◆ GetTrack() [1/2]

WsfTrack & WsfBeamDirector::WsfBeamDirectorMode::GetTrack ( )
inline

Referenced by Select().

◆ GetTrack() [2/2]

const WsfTrack & WsfBeamDirector::WsfBeamDirectorMode::GetTrack ( ) const
inline

◆ GetType()

int WsfBeamDirector::WsfBeamDirectorMode::GetType ( ) const
inline

◆ Initialize()

bool WsfBeamDirector::WsfBeamDirectorMode::Initialize ( double aSimTime)
overridevirtual

Initialize the sensor mode.

Parameters
aSimTimeThe current simulation time.
Returns
'true' if the mode was successfully initialize or 'false' if not.

Reimplemented from WsfSensorMode.

References WsfSensorMode::cBEARING, WsfSensorMode::cELEVATION, WsfSensorMode::cLOCATION, WsfSensorMode::cRANGE, WsfSensorMode::cTYPE, cUNDEFINED, WsfSensorMode::cVELOCITY, WsfPlatformPart::DebugEnabled(), WsfObject::GetName(), WsfSensorMode::GetSensor(), WsfPlatformPart::GetSimulation(), WsfSensorMode::Initialize(), WsfSensorMode::mMaximumRequestCount, mReceiver, WsfSensorMode::mSensorPtr, mTransmitter, mXcvrAntenna, ok, and WsfSensorMode::SetCapabilities().

◆ IsImaging()

bool WsfBeamDirector::WsfBeamDirectorMode::IsImaging ( ) const
inline

References cCUED, cLOCKED, and cLOCKED_WAITING_FOR_CUE.

◆ IsTracking()

bool WsfBeamDirector::WsfBeamDirectorMode::IsTracking ( ) const
inline

References cBREAKLOCK, and cSCANNING.

◆ operator=()

WsfBeamDirectorMode & WsfBeamDirector::WsfBeamDirectorMode::operator= ( const WsfBeamDirectorMode & )
delete

References WsfBeamDirectorMode().

◆ PointAtTargetUpdate()

void WsfBeamDirector::WsfBeamDirectorMode::PointAtTargetUpdate ( double aSimTime)

Update the pointing at a given track by using a kinematic update.

References WsfPlatformPart::DebugEnabled(), WsfObject::GetName(), WsfPlatformPart::GetPlatform(), WsfSimulation::GetPlatformByIndex(), WsfSensorMode::GetSensor(), WsfPlatformPart::GetSimulation(), WsfBeamDirector::PointAtWCS(), and WsfPlatform::Update().

Referenced by AttemptToDetect().

◆ PointAtWCS()

void WsfBeamDirector::WsfBeamDirectorMode::PointAtWCS ( double aSimTime,
double aPointAtWCS[3] )
protected

A private method whereby we hide the details of pointing. Pointing the lidar works differently from the SimpleSensor. We choose to orient the sensor explicitly, either to the scan center to simulate scanning, or to the target center to simulate tracking. This arrangement results in a better visual display.

References WsfSensorMode::GetSensor(), WsfBeamDirector::PointAtWCS(), and WsfBeamDirector::WsfBeamDirector().

◆ ProcessInput()

bool WsfBeamDirector::WsfBeamDirectorMode::ProcessInput ( UtInput & aInput)
overridevirtual

Reimplemented from WsfMode.

References cCUED, cLOCKED, cSCANNING, mReceiver, mTransmitter, mXcvrAntenna, and WsfSensorMode::ProcessInput().

◆ Select()

void WsfBeamDirector::WsfBeamDirectorMode::Select ( double aSimTime)
overridevirtual

The mode is being activated. The specific implementation should perform whatever actions are associated with selecting the mode (e.g.: activating transmitters or receivers).

Parameters
aSimTime[input] The current simulation time.

Implements WsfSensorMode.

References cCUED, cLOCKED, WsfPlatform::Comment(), cSCANNING, WsfPlatformPart::DebugEnabled(), WsfBeamDirector::GetCue(), WsfObject::GetName(), WsfObject::GetNameId(), WsfPlatformPart::GetPlatform(), WsfSensorMode::GetSensor(), WsfTrack::GetTargetName(), GetTrack(), mReceiver, mTransmitter, WsfPlatformPart::SendMessage(), WsfSensor::StartTracking(), and WsfBeamDirector::WsfBeamDirector().

◆ SetTrack()

void WsfBeamDirector::WsfBeamDirectorMode::SetTrack ( const WsfTrack & aTrack)
inline

◆ Update()

void WsfBeamDirector::WsfBeamDirectorMode::Update ( double aSimTime)

References mReceiver, WsfSensorMode::mSensorPtr, mTransmitter, mXcvrAntenna, WsfSensor::PerformScheduledDetections(), and WsfBeamDirector::WsfBeamDirector().

Member Data Documentation

◆ mReceiver

WsfEM_Rcvr WsfBeamDirector::WsfBeamDirectorMode::mReceiver = WsfEM_Rcvr(WsfEM_Rcvr::cRF_SENSOR)
protected

Referenced by AttemptToDetect(), Deselect(), GetEM_Rcvr(), GetEM_Rcvr(), Initialize(), ProcessInput(), Select(), Update(), and WsfBeamDirectorMode().

◆ mTransmitter

WsfEM_Xmtr WsfBeamDirector::WsfBeamDirectorMode::mTransmitter = WsfEM_Xmtr(WsfEM_Xmtr::cXF_SENSOR)
protected

Referenced by AttemptToDetect(), Deselect(), GetEM_Xmtr(), GetEM_Xmtr(), Initialize(), ProcessInput(), Select(), Update(), and WsfBeamDirectorMode().

◆ mXcvrAntenna

WsfEM_Antenna WsfBeamDirector::WsfBeamDirectorMode::mXcvrAntenna = WsfEM_Antenna()
protected

Referenced by AttemptToDetect(), GetMaxRange(), Initialize(), ProcessInput(), Update(), and WsfBeamDirectorMode().

The documentation for this class was generated from the following files:
Copyrights Multiple, All Rights Reserved
