#include <WsfSensorComponent.hpp>

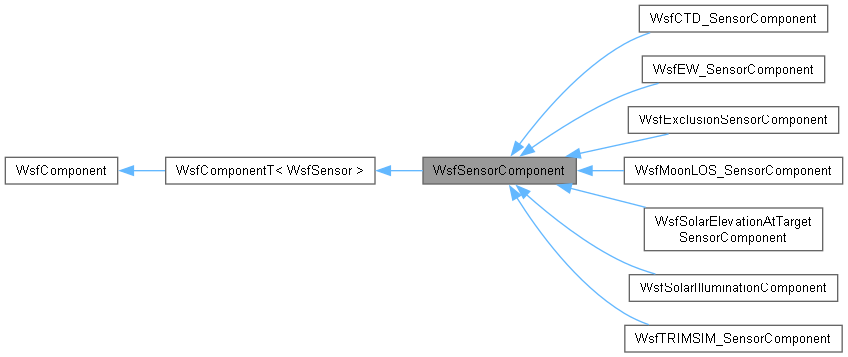

Inheritance diagram for WsfSensorComponent:

[legend]

Collaboration diagram for WsfSensorComponent:

[legend]

Public Types
using	TrackerSettings = WsfSensorTrackerSettings
Public Types inherited from WsfComponentT< WsfSensor >
typedef WsfSensor	ParentType
	This is needed to support the WsfComponentList template.

Utility methods.
WsfSensor *	GetSensor () const
WsfPlatform *	GetPlatform () const
WsfSimulation *	GetSimulation () const

Generic methods.
Actual sensor model implementations do not need to worry about calling these directly because they are required to call base class methods that end up calling these methods. (e.g. WsfRadarSensor::ProcessInput calls WsfSensor::ProcessInput). These always have the same argument lists as the routine from which they are called.
virtual bool	ProcessModeInput (UtInput &aInput, WsfSensorMode &aSensorMode)
virtual bool	ProcessBeamInput (UtInput &aInput, WsfSensorBeam &aSensorBeam)
virtual void	PlatformAdded (double aSimTime, WsfPlatform *aPlatformPtr)
virtual void	PlatformDeleted (WsfPlatform *aPlatformPtr)
virtual void	SelectMode (double aSimTime, WsfStringId aModeNameId)
virtual void	DeselectMode (double aSimTime, WsfStringId aModeNameId)
virtual void	TurnOn (double aSimTime)
virtual void	TurnOff (double aSimTime)
virtual bool	Initialize (double aSimTime)
virtual bool	Initialize2 (double aSimTime)
virtual bool	PreInitialize (double aSimTime)
virtual bool	ProcessInput (UtInput &aInput)

Model-specific methods.
Actual sensor models (e.g. WsfRadarSensor, WsfGeometricSensor, etc.) must place calls in their code because there is no common location from where these methods could be called. See the static wrapper methods below.
virtual void	AttemptToDetect (double aSimTime, WsfSensorResult &aResult)
	Extends the sensor-model implementation of AttemptToDetect.
virtual void	PostAttemptToDetect (double aSimTime, WsfPlatform *aTargetPtr, WsfSensorResult &aResult)
virtual void	ComputeSphericalMeasurementErrors (const WsfSensorResult &aResult, wsf::SphericalMeasurementErrors &aErrors) const
virtual void	PrePerformScheduledDetections (double aSimTime)
virtual void	PostPerformScheduledDetections (double aSimTime)
virtual void	UpdateTrack (double aSimTime, WsfTrack aTrackPtr, WsfPlatform aTargetPtr, WsfSensorResult &aResult)

Track maintenance.
These are called by derived implementations of WsfSensorTracker prior to performing the indicated function. They are more or less in order of call.
virtual bool	TrackerAllowTracking (double aSimTime, const TrackerSettings &aSettings, const WsfTrackId &aRequestId, size_t aObjectId, WsfTrack *aTrackPtr, WsfSensorResult &aResult)
virtual void	TrackerInitializeTrack (double aSimTime, const TrackerSettings &aSettings, const WsfTrackId &aRequestId, size_t aObjectId, WsfSensorMode aModePtr, WsfTrack &aTrackPtr)
virtual void	TrackerUpdateTrack (double aSimTime, const TrackerSettings &aSettings, const WsfTrackId &aRequestId, size_t aObjectId, WsfSensorMode aModePtr, WsfTrack aTrackPtr, WsfPlatform *aTargetPtr, WsfSensorResult &aResult)
virtual void	TrackerDropTrack (double aSimTime, const TrackerSettings &aSettings, const WsfTrackId &aRequestId, size_t aObjectId, WsfSensorMode aModePtr, WsfTrack aTrackPtr)

Model-specific wrapper methods.
These wrap the model-specific methods so specific models only need to have one line inserted into their code where component effects need to be evaluated.
static void	AttemptToDetect (WsfSensor &aSensor, double aSimTime, WsfSensorResult &aResult)
	Convenience method to call AttemptToDetect on all the components.
static bool	PostAttemptToDetect (WsfSensor &aSensor, double aSimTime, WsfPlatform *aTargetPtr, WsfSensorResult &aResult)
static WSF_DEPRECATED void	ComputeMeasurementErrors (WsfSensor &aSensor, WsfSensorResult &aResult, double &aAzError, double &aElError, double &aRangeError, double &aRangeRateError)
	(DEPRECATED) Convenience method to call ComputeMeasurementErrors on all the components.
static void	ComputeSphericalMeasurementErrors (WsfSensor &aSensor, const WsfSensorResult &aResult, wsf::SphericalMeasurementErrors &aErrors)
	Convenience method to call ComputeSphericalMeasurementErrors on all the components.
static void	PrePerformScheduledDetections (WsfSensor &aSensor, double aSimTime)
	Convenience method to call PrePerformScheduledDetections on all the components.
static void	PostPerformScheduledDetections (WsfSensor &aSensor, double aSimTime)
	Convenience method to call PostPerformScheduledDetections on all the components.
static void	UpdateTrack (WsfSensor &aSensor, double aSimTime, WsfTrack aTrackPtr, WsfPlatform aTargetPtr, WsfSensorResult &aResult)
	Convenience method to call UpdateTrack on all the components.

Additional Inherited Members
Public Member Functions inherited from WsfComponentT< WsfSensor >
	WsfComponentT ()
WsfComponentT &	operator= (const WsfComponentT &) noexcept
	~WsfComponentT () override=default
virtual void	ComponentParentChanged (ParentType *aParentPtr)
ParentType *	GetComponentParent () const
void	SetComponentParent (ParentType *aParentPtr)
Public Member Functions inherited from WsfComponent
virtual	~WsfComponent ()=default
virtual WsfComponent *	CloneComponent () const =0
virtual WsfStringId	GetComponentName () const =0
virtual const int *	GetComponentRoles () const =0
virtual void *	QueryInterface (int aRole)=0
virtual int	GetComponentInitializationOrder () const
template<typename T>
bool	QueryInterfaceT (T *&aRolePtr)
bool	ComponentHasRole (int aRole)
	Returns true if the component has the specified role.
virtual void	PreInput ()

Detailed Description

A abstract base class for sensor extension components. Components can be added to implement additional functionality beyond what is provided by a specific model. The responsibilities of a derived class include: -) Implementing the 'required interface' methods as defined in WsfComponent. -) Implementing any desired 'common framework' methods defined in WsfComponent. -) Implementing any desired methods as defined below. -) Implementing the specific capabilities required by the derived class.

Member Typedef Documentation

◆ TrackerSettings

using WsfSensorComponent::TrackerSettings = WsfSensorTrackerSettings

Member Function Documentation

◆ AttemptToDetect() [1/2]

virtual void WsfSensorComponent::AttemptToDetect	(	double	aSimTime,
		WsfSensorResult &	aResult )

inlinevirtual

Extends the sensor-model implementation of AttemptToDetect.

Reimplemented in WsfCTD_SensorComponent, and WsfEW_SensorComponent.

Referenced by WsfSAR_Sensor::SAR_Mode::AttemptToDetect(), and WsfSurfaceWaveRadarSensor::RadarMode::AttemptToDetect().

◆ AttemptToDetect() [2/2]

void WsfSensorComponent::AttemptToDetect	(	WsfSensor &	aSensor,
		double	aSimTime,
		WsfSensorResult &	aResult )

static

Convenience method to call AttemptToDetect on all the components.

References WsfSensor::GetComponents(), and WsfComponentList::HasComponents().

◆ ComputeMeasurementErrors()

void WsfSensorComponent::ComputeMeasurementErrors	(	WsfSensor &	aSensor,
		WsfSensorResult &	aResult,
		double &	aAzError,
		double &	aElError,
		double &	aRangeError,
		double &	aRangeRateError )

static

(DEPRECATED) Convenience method to call ComputeMeasurementErrors on all the components.

References WsfSensor::GetComponents(), WsfComponentList::HasComponents(), wsf::SphericalMeasurementErrors::mAzError, wsf::SphericalMeasurementErrors::mElError, wsf::SphericalMeasurementErrors::mRangeError, and wsf::SphericalMeasurementErrors::mRangeRateError.

◆ ComputeSphericalMeasurementErrors() [1/2]

virtual void WsfSensorComponent::ComputeSphericalMeasurementErrors	(	const WsfSensorResult &	aResult,
		wsf::SphericalMeasurementErrors &	aErrors ) const

inlinevirtual

Modify or compute spherical measurement errors for any sensor error model that produces spherical sensor errors (see WsfStandardSensorErrorModel).

Reimplemented in WsfEW_SensorComponent.

Referenced by wsf::StandardSensorErrorModel::ComputeMeasurementErrors(), WsfPassiveSensor::PassiveMode::PassiveErrorModel::ComputeMeasurementErrors(), and WsfSensorMode::ComputeMeasurementErrors().

◆ ComputeSphericalMeasurementErrors() [2/2]

void WsfSensorComponent::ComputeSphericalMeasurementErrors	(	WsfSensor &	aSensor,
		const WsfSensorResult &	aResult,
		wsf::SphericalMeasurementErrors &	aErrors )

static

Convenience method to call ComputeSphericalMeasurementErrors on all the components.

References WsfSensor::GetComponents(), and WsfComponentList::HasComponents().

◆ DeselectMode()

virtual void WsfSensorComponent::DeselectMode	(	double	aSimTime,
		WsfStringId	aModeNameId )

inlinevirtual

Reimplemented in WsfCTD_SensorComponent, and WsfEW_SensorComponent.

◆ GetPlatform()

WsfPlatform * WsfSensorComponent::GetPlatform ( ) const

References WsfComponentT< WsfSensor >::GetComponentParent(), and WsfPlatformPart::GetPlatform().

Referenced by WsfEW_SensorComponent::AttemptToDetectFalseTarget().

◆ GetSensor()

WsfSensor * WsfSensorComponent::GetSensor ( ) const

inline

References WsfComponentT< PARENT_TYPE >::GetComponentParent().

Referenced by WsfEW_SensorComponent::AttemptToDetectFalseTarget(), WsfTRIMSIM_SensorComponent::CorrectForAltitude(), WsfEW_SensorComponent::EW_Beam::DetectJamStrobes(), WsfCTD_SensorComponent::Initialize(), WsfEW_SensorComponent::Initialize(), WsfExclusionSensorComponent::Initialize(), WsfMoonLOS_SensorComponent::Initialize(), WsfSolarElevationAtTargetSensorComponent::Initialize(), WsfSolarIlluminationComponent::Initialize(), WsfExclusionSensorComponent::PostAttemptToDetect(), WsfMoonLOS_SensorComponent::PostAttemptToDetect(), WsfSolarElevationAtTargetSensorComponent::PostAttemptToDetect(), WsfSolarIlluminationComponent::PostAttemptToDetect(), WsfTRIMSIM_SensorComponent::PostAttemptToDetect(), WsfEW_SensorComponent::PrePerformScheduledDetections(), WsfEW_SensorComponent::EW_Mode::UpdateFalseTargetInteractors(), and WsfTRIMSIM_SensorComponent::UpdateTrack().

◆ GetSimulation()

WsfSimulation * WsfSensorComponent::GetSimulation ( ) const

References WsfComponentT< WsfSensor >::GetComponentParent(), and WsfPlatformPart::GetSimulation().

Referenced by WsfCTD_SensorComponent::AttemptToDetect(), WsfExclusionSensorComponent::PostAttemptToDetect(), WsfMoonLOS_SensorComponent::PostAttemptToDetect(), WsfSolarElevationAtTargetSensorComponent::PostAttemptToDetect(), WsfSolarIlluminationComponent::PostAttemptToDetect(), and WsfCTD_SensorComponent::TrackerAllowTracking().

◆ Initialize()

bool WsfComponent::Initialize ( double aSimTime )

virtual

Perform phase 1 initialization. This is called by WsfPlatform::Initialize() during phase 1 initialization of the platform. The component should complete validation of input data that could not be done by ProcessInput, as well as any other functions to prepare for simulation use (subject to the next paragraph).

The order in which components are initialized is defined by GetComponentInitializationOrder. In general a component implementation of this method should not be dependent on the state of another component, i.e.: it should not assume that the other components Initialize() method has been called. If such a dependency exists one should use Initialize2() if possible, or specify a value GetComponentInitializationOrder to force things to initialize in a particular order.

Parameters

aSimTime The current simulation time.

Returns: true if successful or false if unsuccessful (bad input data, etc.)

Note: This method should NOT add any other components to the platform. This MUST be done in PreInitialize().

Reimplemented from WsfComponent.

Reimplemented in WsfSolarElevationAtTargetSensorComponent, and WsfSolarIlluminationComponent.

◆ Initialize2()

bool WsfComponent::Initialize2 ( double aSimTime )

virtual

Perform phase 2 initialization. This is called by WsfPlatform::Initialize() during phase 2 of platform initialization. This method is typically used when a component may have some dependency on another component having completed its phase 1 initialization. The component should be ready for use in the simulation upon completion of this method.

The order in which components are initialized is defined by GetComponentInitializationOrder.

Parameters

aSimTime The current simulation time.

Returns: true if successful or false if unsuccessful.

Note: This method MUST NOT add any other components to the platform. This MUST be done in PreInitialize().

Reimplemented from WsfComponent.

◆ PlatformAdded()

virtual void WsfSensorComponent::PlatformAdded	(	double	aSimTime,
		WsfPlatform *	aPlatformPtr )

inlinevirtual

Reimplemented in WsfCTD_SensorComponent.

◆ PlatformDeleted()

virtual void WsfSensorComponent::PlatformDeleted ( WsfPlatform * aPlatformPtr )

inlinevirtual

Reimplemented in WsfCTD_SensorComponent.

◆ PostAttemptToDetect() [1/2]

virtual void WsfSensorComponent::PostAttemptToDetect	(	double	aSimTime,
		WsfPlatform *	aTargetPtr,
		WsfSensorResult &	aResult )

inlinevirtual

Extends the sensor-model implementation of AttemptToDetect with post detection by the sensor.

Note: Called after the sensor detection for a target is completed just before target is updated.; Must modify the aResult to modify detection criteria

Reimplemented in WsfCTD_SensorComponent, WsfExclusionSensorComponent, WsfMoonLOS_SensorComponent, WsfSolarElevationAtTargetSensorComponent, WsfSolarIlluminationComponent, and WsfTRIMSIM_SensorComponent.

◆ PostAttemptToDetect() [2/2]

bool WsfSensorComponent::PostAttemptToDetect	(	WsfSensor &	aSensor,
		double	aSimTime,
		WsfPlatform *	aTargetPtr,
		WsfSensorResult &	aResult )

static

Convenience method to call PostAttemptToDetect on all the components.

Parameters

aSensor	[input] The sensor for which to loop all PostAttemptToDetect calls.
aSimTime	[input] The current simulation time.
aTargetPtr	[input] The platform under detection.
aResult	[input/output] The results from the sensor detection causing the track update.

Returns: bool The aResult.Detected() for all calls to the sensor's components with PostAttemptToDetect.

References WsfSensorResult::Detected(), WsfSensor::GetComponents(), and WsfComponentList::HasComponents().

◆ PostPerformScheduledDetections() [1/2]

virtual void WsfSensorComponent::PostPerformScheduledDetections ( double aSimTime )

inlinevirtual

Extends WsfSensor::PerformScheduledDetections Called by models just after exiting the loop.

Reimplemented in WsfEW_SensorComponent.

Referenced by WsfRadarSensor::PerformScheduledDetections().

◆ PostPerformScheduledDetections() [2/2]

void WsfSensorComponent::PostPerformScheduledDetections	(	WsfSensor &	aSensor,
		double	aSimTime )

static

Convenience method to call PostPerformScheduledDetections on all the components.

References WsfSensor::GetComponents(), and WsfComponentList::HasComponents().

◆ PreInitialize()

bool WsfComponent::PreInitialize ( double aSimTime )

virtual

Perform pre-initializion function. This is called by WsfPlatform::Initialize prior to actually initializing the components on a platform (i.e.: calling Initialize and Initialize2 for each component). The primary reason for this method is to allow components to add other components that will then be subsequently initialized. The component may examine the component list and add components, but it must not assume ANYTHING about the actual state of the component.

Parameters

aSimTime The current simulation time.

Returns: true if successful or false if unsuccessful (bad input data, etc.)

Reimplemented from WsfComponent.

◆ PrePerformScheduledDetections() [1/2]

virtual void WsfSensorComponent::PrePerformScheduledDetections ( double aSimTime )

inlinevirtual

Extends WsfSensor::PerformScheduledDetections. Called by models just before entering the loop.

Reimplemented in WsfEW_SensorComponent.

Referenced by WsfRadarSensor::PerformScheduledDetections().

◆ PrePerformScheduledDetections() [2/2]

void WsfSensorComponent::PrePerformScheduledDetections	(	WsfSensor &	aSensor,
		double	aSimTime )

static

Convenience method to call PrePerformScheduledDetections on all the components.

References WsfSensor::GetComponents(), and WsfComponentList::HasComponents().

◆ ProcessBeamInput()

virtual bool WsfSensorComponent::ProcessBeamInput	(	UtInput &	aInput,
		WsfSensorBeam &	aSensorBeam )

inlinevirtual

Reimplemented in WsfCTD_SensorComponent, and WsfEW_SensorComponent.

◆ ProcessInput()

bool WsfComponent::ProcessInput ( UtInput & aInput )

virtual

Evaluate the current input command and determine if it is one processed by the component. The component should get the current command from the input stream and determine if it is one that it recognizes. If it does not recognize the command then it should leave the command in the input stream and return false. If it does recognize the command then it should process the command and return true. If invalid arguments are encountered then it should throw an exception.

Parameters

aInput The input stream.

Returns: true if the current command was recognized (and processed), or false if the command was not recognized.

Exceptions

UtInput::ExceptionBase if an invalid input was encountered.

Reimplemented from WsfComponent.

◆ ProcessModeInput()

virtual bool WsfSensorComponent::ProcessModeInput	(	UtInput &	aInput,
		WsfSensorMode &	aSensorMode )

inlinevirtual

Reimplemented in WsfEW_SensorComponent, WsfExclusionSensorComponent, WsfMoonLOS_SensorComponent, WsfSolarElevationAtTargetSensorComponent, and WsfSolarIlluminationComponent.

◆ SelectMode()

virtual void WsfSensorComponent::SelectMode	(	double	aSimTime,
		WsfStringId	aModeNameId )

inlinevirtual

Reimplemented in WsfCTD_SensorComponent, and WsfEW_SensorComponent.

◆ TrackerAllowTracking()

virtual bool WsfSensorComponent::TrackerAllowTracking	(	double	aSimTime,
		const TrackerSettings &	aSettings,
		const WsfTrackId &	aRequestId,
		size_t	aObjectId,
		WsfTrack *	aTrackPtr,
		WsfSensorResult &	aResult )

inlinevirtual

Called when WsfSensorTracker::TargetDetected receives a detection.

Parameters

aSimTime	The current simulation time.
aSettings	The 'aSettings' argument from the calling 'Target...' method.
aRequestId	The 'aRequestId' argument from the calling 'Target...' method.
aObjectId	The 'aObjectId' argument from the calling 'Target...' method.
aTrackPtr	Pointer to the current track if one exists (can be null).
aResult	The results from the sensor detection. Return true to allow track update/creation to proceed with the current detection. If false the detection will be ignored and any existing track will be dropped.

Reimplemented in WsfCTD_SensorComponent, and WsfEW_SensorComponent.

◆ TrackerDropTrack()

virtual void WsfSensorComponent::TrackerDropTrack	(	double	aSimTime,
		const TrackerSettings &	aSettings,
		const WsfTrackId &	aRequestId,
		size_t	aObjectId,
		WsfSensorMode *	aModePtr,
		WsfTrack *	aTrackPtr )

inlinevirtual

Called from an implementation of the WsfSensorTracker 'Target...' methods when they want to drop a track.

Parameters

aSimTime	The current simulation time.
aSettings	The 'aSettings' argument from the calling 'Target...' method.
aRequestId	The 'aRequestId' argument from the calling 'Target...' method.
aObjectId	The 'aObjectId' argument from the calling 'Target...' method.
aModePtr	The sensor mode last used in updating the track.
aTrackPtr	The track to be dropped.

Reimplemented in WsfCTD_SensorComponent, and WsfEW_SensorComponent.

Referenced by WsfSensorTracker::DropTrackP().

◆ TrackerInitializeTrack()

virtual void WsfSensorComponent::TrackerInitializeTrack	(	double	aSimTime,
		const TrackerSettings &	aSettings,
		const WsfTrackId &	aRequestId,
		size_t	aObjectId,
		WsfSensorMode *	aModePtr,
		WsfTrack *&	aTrackPtr )

inlinevirtual

Called from an implementation of the WsfSensorTracker 'Target...' methods when they want to initiate a track.

Parameters

aSimTime	The current simulation time.
aSettings	The 'aSettings' argument from the calling 'Target...' method.
aRequestId	The 'aRequestId' argument from the calling 'Target...' method.
aObjectId	The 'aObjectId' argument from the calling 'Target...' method.
aModePtr	The sensor mode used in creating the track.
aTrackPtr	Updated with the pointer to the created track.

Reimplemented in WsfEW_SensorComponent.

Referenced by WsfSensorTracker::InitializeTrackP().

◆ TrackerUpdateTrack()

virtual void WsfSensorComponent::TrackerUpdateTrack	(	double	aSimTime,
		const TrackerSettings &	aSettings,
		const WsfTrackId &	aRequestId,
		size_t	aObjectId,
		WsfSensorMode *	aModePtr,
		WsfTrack *	aTrackPtr,
		WsfPlatform *	aTargetPtr,
		WsfSensorResult &	aResult )

inlinevirtual

Called from an implementation of the WsfSensorTracker 'Target...' methods when they want to update a track.

Parameters

aSimTime	The current simulation time.
aSettings	The 'aSettings' argument from the calling 'Target...' method.
aRequestId	The 'aRequestId' argument from the calling 'Target...' method.
aObjectId	The 'aObjectId' argument from the calling 'Target...' method.
aModePtr	The sensor mode used in updating the track.
aTrackPtr	The track to be updated.
aTargetPtr	The platform representing the updated track.
aResult	The results from the sensor detection causing the track update.

Reimplemented in WsfEW_SensorComponent.

Referenced by WsfSensorTracker::UpdateTrackP().

◆ TurnOff()

virtual void WsfSensorComponent::TurnOff ( double aSimTime )

inlinevirtual

Reimplemented in WsfCTD_SensorComponent.

◆ TurnOn()

virtual void WsfSensorComponent::TurnOn ( double aSimTime )

inlinevirtual

◆ UpdateTrack() [1/2]

virtual void WsfSensorComponent::UpdateTrack	(	double	aSimTime,
		WsfTrack *	aTrackPtr,
		WsfPlatform *	aTargetPtr,
		WsfSensorResult &	aResult )

inlinevirtual

Reimplemented in WsfEW_SensorComponent, and WsfTRIMSIM_SensorComponent.

Referenced by WsfSensorMode::UpdateTrack().

◆ UpdateTrack() [2/2]

void WsfSensorComponent::UpdateTrack	(	WsfSensor &	aSensor,
		double	aSimTime,
		WsfTrack *	aTrackPtr,
		WsfPlatform *	aTargetPtr,
		WsfSensorResult &	aResult )

static

Convenience method to call UpdateTrack on all the components.

References WsfSensor::GetComponents(), and WsfComponentList::HasComponents().

The documentation for this class was generated from the following files:

Public Types

Utility methods.

Generic methods.

Model-specific methods.

Track maintenance.

Model-specific wrapper methods.

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ TrackerSettings

Member Function Documentation

◆ AttemptToDetect() [1/2]

◆ AttemptToDetect() [2/2]

◆ ComputeMeasurementErrors()

◆ ComputeSphericalMeasurementErrors() [1/2]

◆ ComputeSphericalMeasurementErrors() [2/2]

◆ DeselectMode()

◆ GetPlatform()

◆ GetSensor()

◆ GetSimulation()

◆ Initialize()

◆ Initialize2()

◆ PlatformAdded()

◆ PlatformDeleted()

◆ PostAttemptToDetect() [1/2]

◆ PostAttemptToDetect() [2/2]

◆ PostPerformScheduledDetections() [1/2]

◆ PostPerformScheduledDetections() [2/2]

◆ PreInitialize()

◆ PrePerformScheduledDetections() [1/2]

◆ PrePerformScheduledDetections() [2/2]

◆ ProcessBeamInput()

◆ ProcessInput()

◆ ProcessModeInput()

◆ SelectMode()

◆ TrackerAllowTracking()

◆ TrackerDropTrack()

◆ TrackerInitializeTrack()

◆ TrackerUpdateTrack()

◆ TurnOff()

◆ TurnOn()

◆ UpdateTrack() [1/2]

◆ UpdateTrack() [2/2]
