#include <WsfStandardSensorErrorModel.hpp>

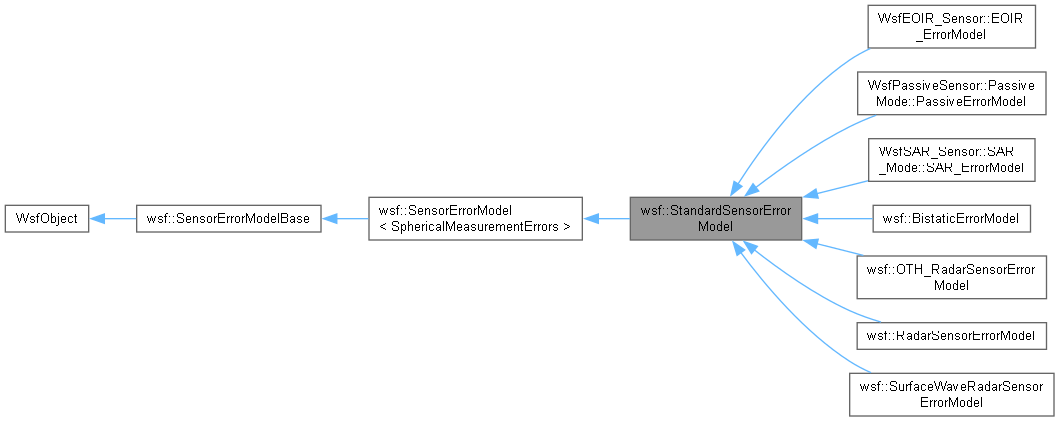

Inheritance diagram for wsf::StandardSensorErrorModel:

[legend]

Collaboration diagram for wsf::StandardSensorErrorModel:

[legend]

Classes
struct	Sigmas
	A set of standard deviations of the mean associated with single sensor monostatic detections. More...

Public Member Functions
StandardSensorErrorModel *	Clone () const override
	Create a clone of "this" object.
bool	ProcessInput (UtInput &aInput) override
bool	IsStandardModel () const final
Public Member Functions inherited from wsf::SensorErrorModelBase
virtual bool	Initialize (WsfSensorMode *aSensorModePtr)
virtual void	ApplyMeasurementErrors (WsfSensorResult &aResult)=0
virtual bool	IsNullModel () const
	Is this a null model (i.e., ApplyMeasurementErrors has no effect).
bool	DebugEnabled () const
WsfSensorMode *	GetSensorMode () const
void	SetSensorMode (WsfSensorMode *aSensorModePtr)
Public Member Functions inherited from WsfObject
	WsfObject ()
	This is the constructor for the WsfObject class.
	~WsfObject () override
	This is the destructor for the WsfObject class.
const char *	GetScriptClassName () const override
const std::string &	GetType () const
WsfStringId	GetTypeId () const
	Get the string ID of the 'type' of the object.
void	SetType (WsfStringId aType)
const std::string &	GetBaseType () const
WsfStringId	GetBaseTypeId () const
const TypeList &	GetTypeList () const
bool	IsA_TypeOf (WsfStringId aType) const
WsfObject &	operator= (const WsfObject &aRhs)
	Assignment operator.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
const std::string &	GetName () const
WsfStringId	GetNameId () const
void	SetName (WsfStringId aName)

Static Public Member Functions
static std::unique_ptr< SensorErrorModelBase >	ObjectFactory (const std::string &aTypeName)

Sensor error access methods.
void	SetSigmas (const Sigmas &aSigmas)
const Sigmas &	GetSigmas () const
void	SetAzErrorStdDev (double aAzErrorStdDev)
void	SetElErrorStdDev (double aElErrorStdDev)
void	SetRangeErrorStdDev (double aRangeErrorStdDev)
void	SetRangeRateErrorStdDev (double aRangeRateErrorStdDev)
std::unique_ptr< SphericalMeasurementErrors >	ComputeMeasurementErrors (WsfSensorResult &aResult) const override
void	ApplyMeasurementErrors (const SphericalMeasurementErrors &aErrors, WsfSensorResult &aResult) override
virtual SphericalMeasurementErrors	GetSphericalErrorStdDev (ut::Random &aRandom, WsfSensorResult &aResult, const Sigmas &aSigmas) const

Additional Inherited Members
Public Types inherited from wsf::SensorErrorModelBase
using	SensorModelTypes = WsfObjectTypeList<SensorErrorModelBase>
Public Types inherited from WsfObject
typedef std::vector< WsfStringId >	TypeList
	The list of types returned by GetTypeList.
	WsfObject (const WsfObject &aSrc)
	Copy constructor (for Clone()).

Detailed Description

A sensor error model for the default/standard sensor error model functionality. This model explicitly uses spherical input parameters (Sigmas) to produce normally-distributed az, el, range and range-rate errors.

Member Function Documentation

◆ ApplyMeasurementErrors()

void wsf::StandardSensorErrorModel::ApplyMeasurementErrors	(	const SphericalMeasurementErrors &	aErrors,
		WsfSensorResult &	aResult )

overridevirtual

Apply measurement errors computed with ComputeMeasurementErrors to a sensor result.

Parameters

aErrors	The sensor errors as returned from ComputeMeasurementErrors.
aResult	The sensing chance result to which the error is applied.

Implements wsf::SensorErrorModel< SphericalMeasurementErrors >.

Reimplemented in wsf::SurfaceWaveRadarSensorErrorModel.

References WsfEM_XmtrRcvr::GetAntenna(), WsfEM_Interaction::GetReceiver(), WsfEM_Antenna::GetRelativeLocationWCS(), WsfSensorMode::GetSensor(), wsf::SensorErrorModelBase::GetSensorMode(), wsf::SphericalMeasurementErrors::mAzError, wsf::SphericalMeasurementErrors::mElError, WsfSensorResult::mMeasurement, WsfEM_Interaction::RelativeData::mRange, wsf::SphericalMeasurementErrors::mRangeError, wsf::SphericalMeasurementErrors::mRangeRateError, WsfEM_Interaction::mRcvrToTgt, WsfEM_Interaction::mRcvrToXmtr, WsfEM_Interaction::RelativeData::mTrueAz, WsfEM_Interaction::RelativeData::mTrueEl, and WsfMeasurement::SetSphericalMeasurement().

◆ Clone()

StandardSensorErrorModel * wsf::StandardSensorErrorModel::Clone ( ) const

overridevirtual

Create a clone of "this" object.

Implements wsf::SensorErrorModelBase.

Reimplemented in wsf::SurfaceWaveRadarSensorErrorModel.

◆ ComputeMeasurementErrors()

std::unique_ptr< SphericalMeasurementErrors > wsf::StandardSensorErrorModel::ComputeMeasurementErrors ( WsfSensorResult & aResult ) const

overridevirtual

Compute the 'standard' measurement errors.

Parameters

aResult The sensing chance result data.

Returns: The computed errors.

Implements wsf::SensorErrorModel< SphericalMeasurementErrors >.

References WsfSensorComponent::ComputeSphericalMeasurementErrors(), wsf::SensorErrorModelBase::GetSensorMode(), and GetSphericalErrorStdDev().

◆ GetSigmas()

const Sigmas & wsf::StandardSensorErrorModel::GetSigmas ( ) const

inline

Referenced by WsfEOIR_Sensor::EOIR_ErrorModel::ApplyMeasurementErrors(), WsfPassiveSensor::PassiveMode::PassiveErrorModel::ComputeMeasurementErrors(), and wsf::BistaticErrorModel::Initialize().

◆ GetSphericalErrorStdDev()

SphericalMeasurementErrors wsf::StandardSensorErrorModel::GetSphericalErrorStdDev	(	ut::Random &	aRandom,
		WsfSensorResult &	aResult,
		const Sigmas &	aSigmas ) const

virtual

Specifically compute normally distributed polar measurement errors based on the given sensor result and set of standard deviations.

Parameters

aRandom	The random number generator used to generate the errors.
aResult	The sensing chance result that may be used to help compute the sensor errors.
aSigmas	The set of standard deviations used to compute the sensor errors.

Note: The sensor result may be modified by this method.; Once the deprecated WsfSensorMode::ComputeMeasurementErrors is removed, this method can be made protected.

Reimplemented in wsf::BistaticErrorModel, wsf::OTH_RadarSensorErrorModel, and wsf::SurfaceWaveRadarSensorErrorModel.

References wsf::SensorErrorModelBase::GetSensorMode(), wsf::SphericalMeasurementErrors::mAzError, wsf::StandardSensorErrorModel::Sigmas::mAzErrorStdDev, wsf::SphericalMeasurementErrors::mElError, wsf::StandardSensorErrorModel::Sigmas::mElErrorStdDev, WsfSensorResult::mMeasurement, WsfEM_Interaction::RelativeData::mRange, wsf::SphericalMeasurementErrors::mRangeError, wsf::StandardSensorErrorModel::Sigmas::mRangeErrorStdDev, wsf::SphericalMeasurementErrors::mRangeRateError, wsf::StandardSensorErrorModel::Sigmas::mRangeRateErrorStdDev, WsfEM_Interaction::mRcvrToTgt, WsfEM_Interaction::mRcvrToXmtr, WsfSensorMode::ReportsBearing(), WsfSensorMode::ReportsElevation(), WsfSensorMode::ReportsLocation(), WsfSensorMode::ReportsRange(), and WsfSensorMode::ReportsRangeRate().

Referenced by ComputeMeasurementErrors(), WsfPassiveSensor::PassiveMode::PassiveErrorModel::ComputeMeasurementErrors(), and wsf::OTH_RadarSensorErrorModel::GetSphericalErrorStdDev().

◆ IsStandardModel()

bool wsf::StandardSensorErrorModel::IsStandardModel ( ) const

inlinefinalvirtual

Is this a "standard" model that utilizes az/el/range/range rate standard deviations to compute normally distributed errors.

Reimplemented from wsf::SensorErrorModelBase.

◆ ObjectFactory()

std::unique_ptr< SensorErrorModelBase > wsf::StandardSensorErrorModel::ObjectFactory ( const std::string & aTypeName )

static

Factory method for WsfSensorErrorModelTypes. This is called by WsfSensorErrorModelTypes::LoadType to determine if a pattern represented by this class is being requested.

Referenced by WsfSensorErrorModelTypes::WsfSensorErrorModelTypes().

◆ ProcessInput()

bool wsf::StandardSensorErrorModel::ProcessInput ( UtInput & aInput )

overridevirtual

Process input from a generic source.

Examine the current input command. If it is NOT one of the commands recognized by this class then it simply returns 'false'. If it is one of the commands recognized by this class then it processes the command and returns 'true'.

Parameters

aInput a reference to a UtInput object.

Returns: 'true' if the command was one recognized by the class or 'false' if not.

Exceptions

UtInput::ExceptionBase (or an object derived from it) if the command was recognized but contains some sort of error.

Note: If a derived class does not recognize the command (i.e.: the return value is false) then it should call the base class ProcessInput method. This chain should continue until either the command is recognized or the top-level base class is encountered.

Reimplemented from wsf::SensorErrorModelBase.

Reimplemented in wsf::SurfaceWaveRadarSensorErrorModel.

References wsf::SensorErrorModelBase::ProcessInput().

Referenced by wsf::BistaticErrorModel::ProcessInput(), wsf::OTH_RadarSensorErrorModel::ProcessInput(), wsf::RadarSensorErrorModel::ProcessInput(), and WsfSAR_Sensor::SAR_Mode::SAR_ErrorModel::ProcessInput().

◆ SetAzErrorStdDev()

void wsf::StandardSensorErrorModel::SetAzErrorStdDev ( double aAzErrorStdDev )

inline

◆ SetElErrorStdDev()

void wsf::StandardSensorErrorModel::SetElErrorStdDev ( double aElErrorStdDev )

inline

◆ SetRangeErrorStdDev()

void wsf::StandardSensorErrorModel::SetRangeErrorStdDev ( double aRangeErrorStdDev )

inline

◆ SetRangeRateErrorStdDev()

void wsf::StandardSensorErrorModel::SetRangeRateErrorStdDev ( double aRangeRateErrorStdDev )

inline

◆ SetSigmas()

void wsf::StandardSensorErrorModel::SetSigmas ( const Sigmas & aSigmas )

inline

The documentation for this class was generated from the following files:
