A measurement class that provides WSF-specific interfaces and data extrapolation. More...

#include <WsfMeasurement.hpp>

Inheritance diagram for WsfMeasurement:

[legend]

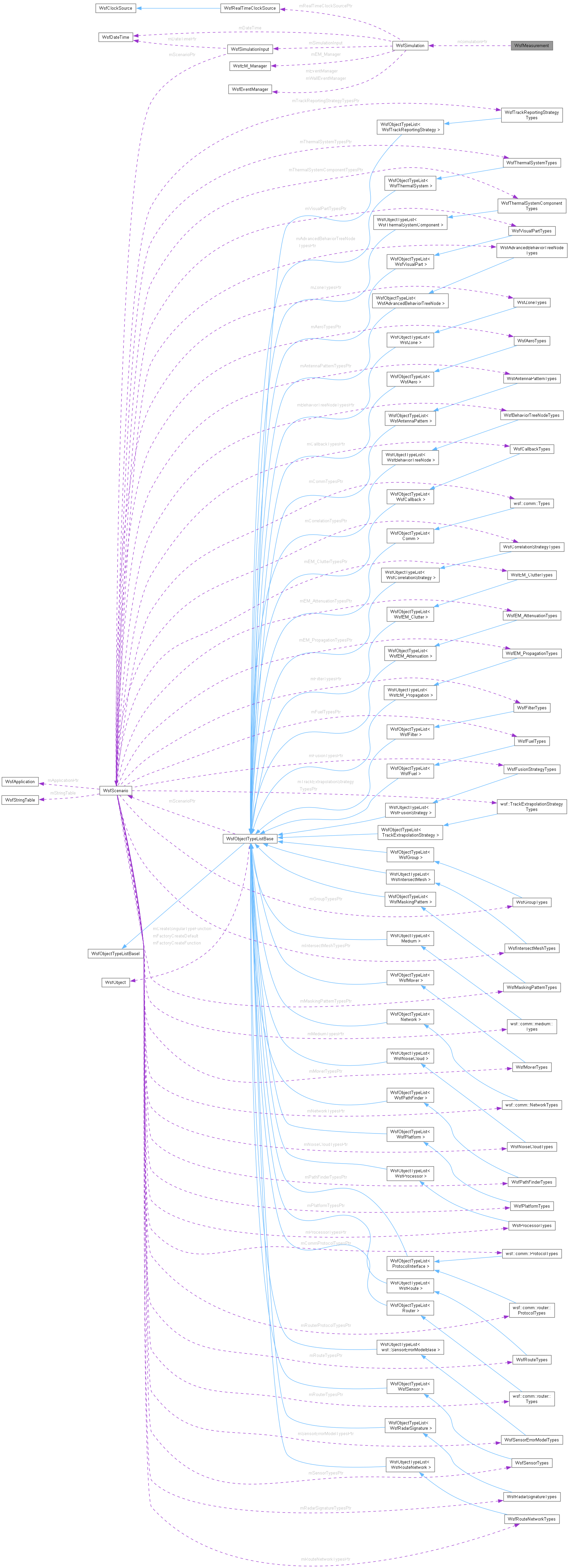

Collaboration diagram for WsfMeasurement:

[legend]

Public Member Functions
	WsfMeasurement ()
	WsfMeasurement (const WsfMeasurement &aSrc)=default
virtual WsfMeasurement *	Clone () const
virtual bool	ProcessInput (UtInput &aInput)
virtual void	Update (double aSimTime)
virtual bool	IsTrack () const

Spatial domain methods.
The spatial domain represents the domain in which that track is thought to exist (land, air, space, etc.) Some systems report tracks differently depending on their domain.
using	WsfSpatialDomainInformation = UtInformation<int>
WsfSpatialDomainInformation	mSpatialDomain
WsfSimulation *	mSimulationPtr {nullptr}
WsfSpatialDomain	GetSpatialDomain () const
	Get the spatial domain of the platform.
void	SetSpatialDomain (const WsfSpatialDomain &aSpatialDomain)
	Set the spatial domain of the platform.
double	GetDefaultAltitude () const
	Return a default altitude based on the platform's spatial domain.
static double	GetDefaultAltitude (WsfSpatialDomain aDomain)
	Given a spatial domain, return the default altitude of that domain.
const wsf::TrackExtrapolators *	GetTrackExtrapolators () const

Virtual filter methods.
virtual WsfFilter *	GetFilter ()
	Return a pointer to the filter. If no filter is present, the pointer will be zero.
virtual const WsfFilter *	GetFilter () const
	Return a pointer to the filter (const version). If no filter is present, the pointer will be zero.

Extrapolation methods.
virtual bool	GetExtrapolatedLocationWCS (double aSimTime, double aLocationWCS[3]) const
template<typename T>
bool	GetExtrapolatedData (double aSimTime, const std::string &aExtrapolationType, T &aData) const
virtual void	KinematicUpdate (double aSimTime)
	Update the measurement/track to the given time using filtering and extrapolation.
WsfSimulation *	GetSimulation () const
	Return the simulation object this measurement is associated with, or nullptr if WsfMeasurement::Initialize was not called.
void	SetSimulation (WsfSimulation &aSimulation)
void	SetSphericalMeasurement (double aSimTime, double aAzimuth, double aElevation, double aRange, double aRangeRate)
	Convenience method to set a 3D spherical measurement result.

Detailed Description

A measurement class that provides WSF-specific interfaces and data extrapolation.

Member Typedef Documentation

◆ WsfSpatialDomainInformation

using WsfMeasurement::WsfSpatialDomainInformation = UtInformation<int>

protected

Constructor & Destructor Documentation

◆ WsfMeasurement() [1/2]

WsfMeasurement::WsfMeasurement ( )

References mSpatialDomain, and WSF_SPATIAL_DOMAIN_UNKNOWN.

Referenced by Clone(), WsfTrack::KinematicUpdate(), WsfLocalTrack::UpdateFilter(), WsfMeasurement(), and WsfTrack::WsfTrack().

◆ WsfMeasurement() [2/2]

WsfMeasurement::WsfMeasurement ( const WsfMeasurement & aSrc )

default

References Clone(), ProcessInput(), and WsfMeasurement().

Member Function Documentation

◆ Clone()

WsfMeasurement * WsfMeasurement::Clone ( ) const

virtual

Reimplemented in WsfLocalTrack, and WsfTrack.

References WsfMeasurement().

Referenced by WsfEW_SensorComponent::TrackerUpdateTrack(), and WsfMeasurement().

◆ GetDefaultAltitude() [1/2]

double WsfMeasurement::GetDefaultAltitude ( ) const

inline

Return a default altitude based on the platform's spatial domain.

References GetDefaultAltitude(), and GetSpatialDomain().

Referenced by MTT_PerceivedCluster::CopyFrom(), MTT_ActiveTrack::CopyTo(), and GetDefaultAltitude().

◆ GetDefaultAltitude() [2/2]

double WsfMeasurement::GetDefaultAltitude ( WsfSpatialDomain aDomain )

staticprotected

Given a spatial domain, return the default altitude of that domain.

References WSF_SPATIAL_DOMAIN_AIR, WSF_SPATIAL_DOMAIN_LAND, WSF_SPATIAL_DOMAIN_SPACE, and WSF_SPATIAL_DOMAIN_SUBSURFACE.

◆ GetExtrapolatedData()

template<typename T>

bool WsfMeasurement::GetExtrapolatedData	(	double	aSimTime,
		const std::string &	aExtrapolationType,
		T &	aData ) const

inline

Extrapolate measurement data based on stored wsf::TrackExtrapolation objects.

Parameters

aSimTime	The time to which the data should be extrapolated.
aExtrapolationType	The type of extrapolation to be performed, obtained from the track extrapolation object's GetTypeId method.
aData	The output extrapolated data.

Returns: Whether the data were extrapolated.

Note: Extrapolation is most commonly performed for wsf::KinematicState, to include WCS location (WsfMeasurement::GetExtrapolatedLocationWCS).

References wsf::TrackExtrapolation< T >::Extrapolate(), wsf::TrackExtrapolators::Find(), and GetTrackExtrapolators().

Referenced by GetExtrapolatedLocationWCS().

◆ GetExtrapolatedLocationWCS()

bool WsfMeasurement::GetExtrapolatedLocationWCS	(	double	aSimTime,
		double	aLocationWCS[3] ) const

virtual

Get the predicted perceived target WCS location at a time other than the last updated time. Returns true if successful or false if not enough information is present (e.g.: this is a 'range-only' track).

Parameters

aSimTime	The time at which the location estimate is desired.
aLocationWCS	(output) The estimated location at the given time.

Returns: Whether an extrapolated location could be computed based on data in the measurement.

References GetExtrapolatedData(), wsf::KinematicStateExtrapolation::GetTypeId(), and wsf::TrackExtrapolation< KinematicState >::Type().

Referenced by WsfBallisticMissileLaunchComputer::ComputeAirIntercept(), WsfATA_LaunchComputer::EstimatedTimeToIntercept(), WsfBallisticMissileLaunchComputer::EstimatedTimeToIntercept(), WsfSAM_LaunchComputer::EstimatedTimeToIntercept(), WsfQuantumEvaluatorDistance::Evaluate(), WsfQuantumEvaluatorInterceptTime::Evaluate(), WsfWeaponTrackProcessor::GetInterceptData(), WsfWeapon::GetTargetLocationWCS(), WsfDefaultSensorTracker::GetTargetState(), WsfRoadMover::GetTravelTime(), WsfRoadMover::GoToTrack(), WsfTrack::Initialize(), WsfParabolicMover::InitShot(), KinematicUpdate(), WsfTrack::LineOfSightRatesFrom(), WsfHeatMap::LocalTrackDropped(), wsf::event::utils::PrintTrackData(), wsf::event::utilsCSV::PrintTrackData(), WsfSA_Predict::ProjectPositionInTime(), WsfDefaultSensorScheduler::SelectTarget(), WsfLocalTrack::UpdateFilter(), UT_DEFINE_SCRIPT_METHOD(), WsfATG_LaunchComputer::WithinConstraintsAt(), WsfLaunchComputer::WithinConstraintsAt(), WsfRF_Jammer::WithinFieldOfView(), WsfSensor::WithinFieldOfView(), and WsfWeapon::WithinFieldOfView().

◆ GetFilter() [1/2]

virtual WsfFilter * WsfMeasurement::GetFilter ( )

inlinevirtual

Return a pointer to the filter. If no filter is present, the pointer will be zero.

Reimplemented in WsfLocalTrack.

Referenced by wsf::space::KinematicStateExtrapolation::Extrapolate(), and WsfTrack::KinematicUpdate().

◆ GetFilter() [2/2]

virtual const WsfFilter * WsfMeasurement::GetFilter ( ) const

inlinevirtual

Return a pointer to the filter (const version). If no filter is present, the pointer will be zero.

Reimplemented in WsfLocalTrack.

◆ GetSimulation()

WsfSimulation * WsfMeasurement::GetSimulation ( ) const

inline

Return the simulation object this measurement is associated with, or nullptr if WsfMeasurement::Initialize was not called.

References mSimulationPtr.

Referenced by wsf::space::KinematicStateExtrapolation::Extrapolate().

◆ GetSpatialDomain()

WsfSpatialDomain WsfMeasurement::GetSpatialDomain ( ) const

inline

Get the spatial domain of the platform.

References mSpatialDomain.

Referenced by WsfWeaponServer::GenerateCommand(), GetDefaultAltitude(), WsfL16::SurveillancePart::HaveReportingResponsibility(), wsf::DefaultTrackExtrapolationStrategy::InitializeExtrapolation(), WsfL16::SurveillancePart::IsTrackReportable(), wsf::UCI_AMTI_Component::OnSensorTrackInitiated(), wsf::UCI_AMTI_Component::OnSensorTrackUpdated(), WsfEventPipeInterface::PackTrack(), wsf::event::utils::PrintTrackData(), wsf::event::utilsCSV::PrintTrackData(), WsfDefaultFusion::UpdateSpatialDomain(), WsfJamStrobeDetector::UpdateTrack(), and WsfSensorMode::UpdateTrack().

◆ GetTrackExtrapolators()

const wsf::TrackExtrapolators * WsfMeasurement::GetTrackExtrapolators ( ) const

protected

If WsfMeasurement::mSimulationPtr is non-null, this method performs a just-in-time initialization of WsfMeasurement::mExtrapolators. This is necessary because the desired extrapolation objects are unknown until the measurement data are populated (i.e., post-construction/initialization).

Note: This method must be called to access WsfMeasurement::mExtrapolators from within this class implementation for correct extrapolation.

References wsf::TrackExtrapolationStrategyTypes::Get(), wsf::TrackExtrapolationStrategyTypes::GetDefaultStrategy(), wsf::DefaultTrackExtrapolationStrategy::InitializeExtrapolation(), and mSimulationPtr.

Referenced by GetExtrapolatedData().

◆ IsTrack()

virtual bool WsfMeasurement::IsTrack ( ) const

inlinevirtual

Reimplemented in WsfTrack.

◆ KinematicUpdate()

void WsfMeasurement::KinematicUpdate ( double aSimTime )

virtual

Update the measurement/track to the given time using filtering and extrapolation.

Reimplemented in WsfTrack.

References GetExtrapolatedLocationWCS(), and SetLocationWCS().

Referenced by WsfTrack::KinematicUpdate(), and WsfDefaultFusion::UpdateLocalResultFromNonLocalResult().

◆ ProcessInput()

bool WsfMeasurement::ProcessInput ( UtInput & aInput )

virtual

Reimplemented in WsfTrack.

References mSpatialDomain, and WsfTypes::StringToEnum().

Referenced by WsfTrack::ProcessInput(), and WsfMeasurement().

◆ SetSimulation()

void WsfMeasurement::SetSimulation ( WsfSimulation & aSimulation )

inline

Set the simulation object associated with this measurement.

Note: A simulation does not need to be set unless data extrapolation (GetExtrapolatedData) is desired.

References mSimulationPtr.

Referenced by WsfTrack::Initialize().

◆ SetSpatialDomain()

void WsfMeasurement::SetSpatialDomain ( const WsfSpatialDomain & aSpatialDomain )

inline

Set the spatial domain of the platform.

References mSpatialDomain.

Referenced by WsfWeaponServer::CreateATargetPoint(), WsfWeaponServer::CreateATargetPoint(), WsfSensorMode::InitializeTrack(), WsfUtil::MakeTrack(), WsfWeaponServer::ProcessCommand(), WsfDefaultFusion::UpdateSpatialDomain(), WsfJamStrobeDetector::UpdateTrack(), WsfSensorMode::UpdateTrack(), and WsfSensorMode::UpdateTrackReportingFlags().

◆ SetSphericalMeasurement()

void WsfMeasurement::SetSphericalMeasurement	(	double	aSimTime,
		double	aAzimuth,
		double	aElevation,
		double	aRange,
		double	aRangeRate )

Convenience method to set a 3D spherical measurement result.

Parameters

aSimTime	The time at which the measurement is valid.
aAzimuth	The measurement azimuth.
aElevation	The measurement elevation.
aRange	The range of the measurement.
aRangeRate	The measurement range rate.

Referenced by wsf::AbsoluteSensorErrorModel::ApplyMeasurementErrors(), and wsf::StandardSensorErrorModel::ApplyMeasurementErrors().

◆ Update()

virtual void WsfMeasurement::Update ( double aSimTime )

inlinevirtual

Reimplemented in WsfTrack.

Referenced by WsfDefaultFusion::UpdateLocalResultFromNonLocalResult().

Member Data Documentation

◆ mSimulationPtr

WsfSimulation* WsfMeasurement::mSimulationPtr {nullptr}

protected

Referenced by GetSimulation(), WsfTrack::GetSimulation(), GetTrackExtrapolators(), WsfTrack::Initialize(), SetSimulation(), WsfTrack::SetSimulation(), and WsfTrack::UseQuantitativeTrackQuality().

◆ mSpatialDomain

WsfSpatialDomainInformation WsfMeasurement::mSpatialDomain

protected

Referenced by GetSpatialDomain(), ProcessInput(), SetSpatialDomain(), WsfTrack::UpdateFromMeasurement(), and WsfMeasurement().

The documentation for this class was generated from the following files:
